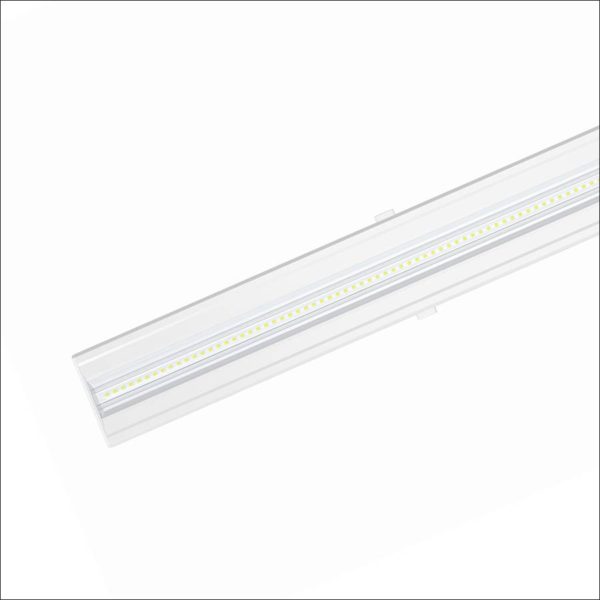

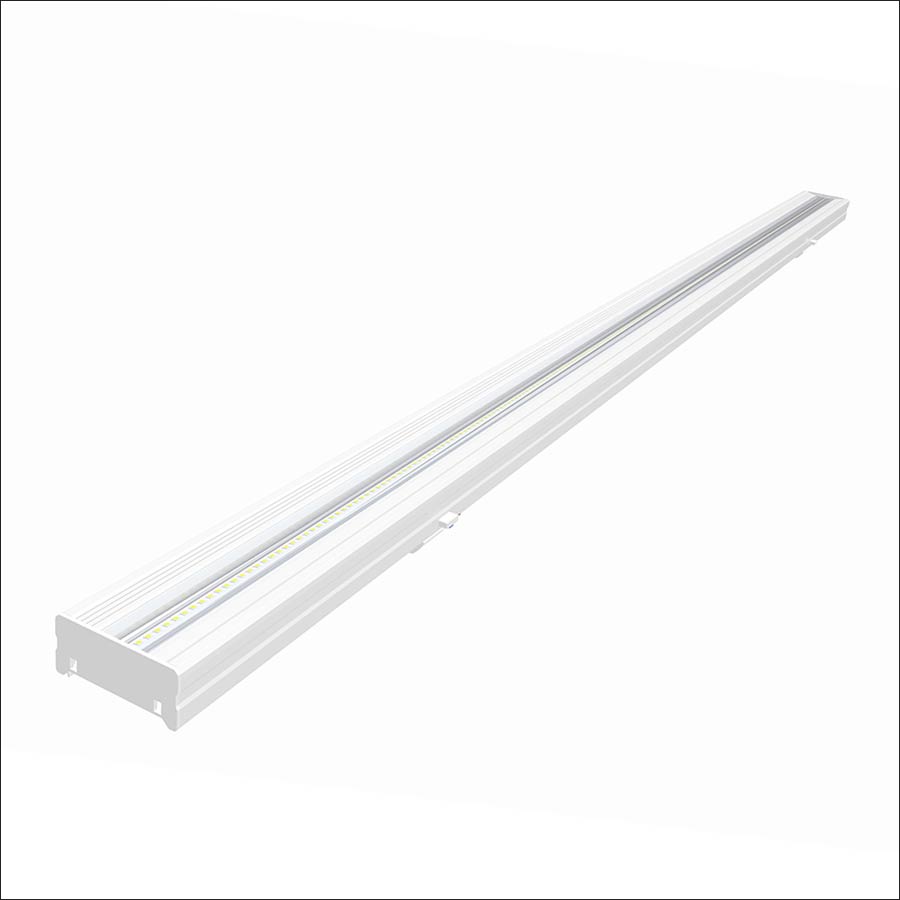

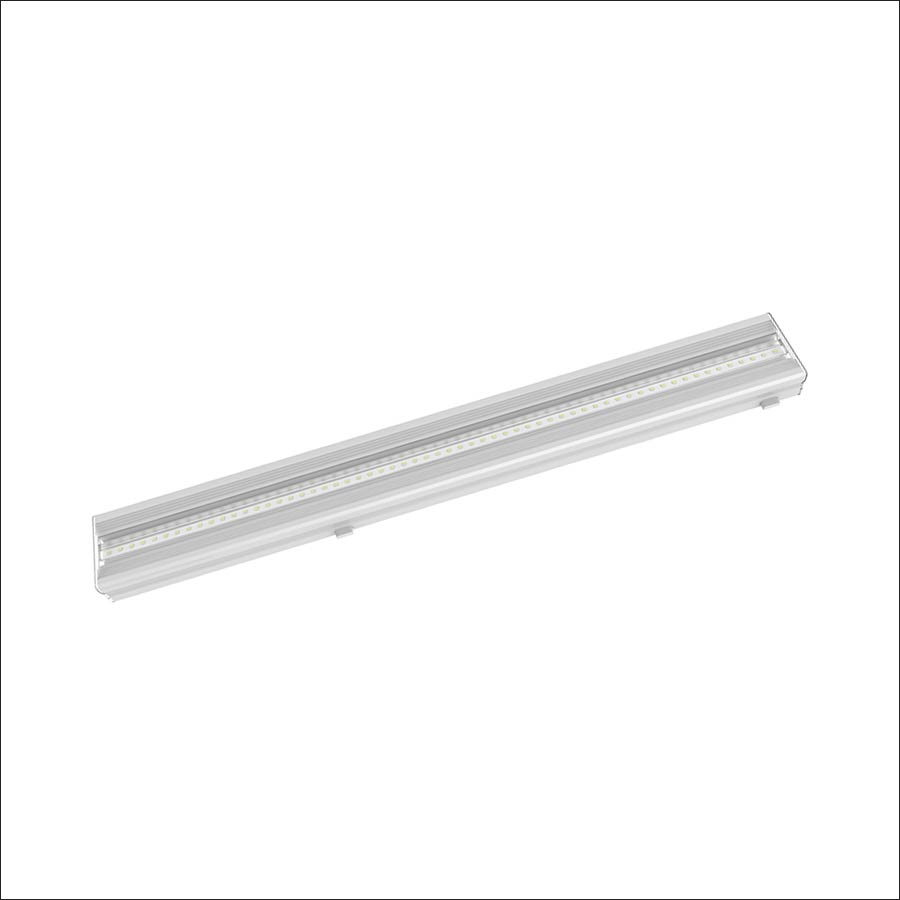

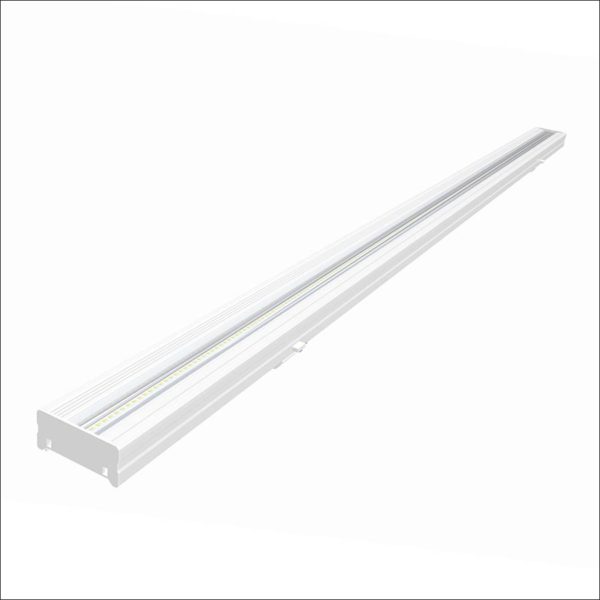

26W-85W LED Luminaire of Integrated Linkable LED Linear Light Fixtures

Item: YB-01-D LED Luminaire
Product Name: 26W-85W LED Luminaire of LED Linear Light Fixtures

Power: 26W 35W 55W 65W 85W
Rated Voltage: 100-277V
Color Temperaturre: 3000k / 4000k / 5000k / 6000k
Rendering Index: Ra>80
Dimming: 0-10V/DALI
Beam Angle: 30°/60°/90°/Single/Double Asymmetric
130 Lm/W
Warranty 5 Years

Link up to 9750W on one power source, due to 150 pcs of 1500mm 65W LED luminaires can be connected together for the LED linear light fixture in one power source, even more.

LED Luminaire Features for the Linear Lights Fixtures

The LED luminaires are integrated with high quality LED chips, providing even and well-balanced high-quality lighting output without glare and dark spots.

With a color rendering index of Ra > 80, color temperatures of 3000 K, 4000 K 5000 K and 6000 K, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where required high accuracy of color, such as in museum, jewelry store, printing factory and so on, CRI95 linear series is highly recommended.

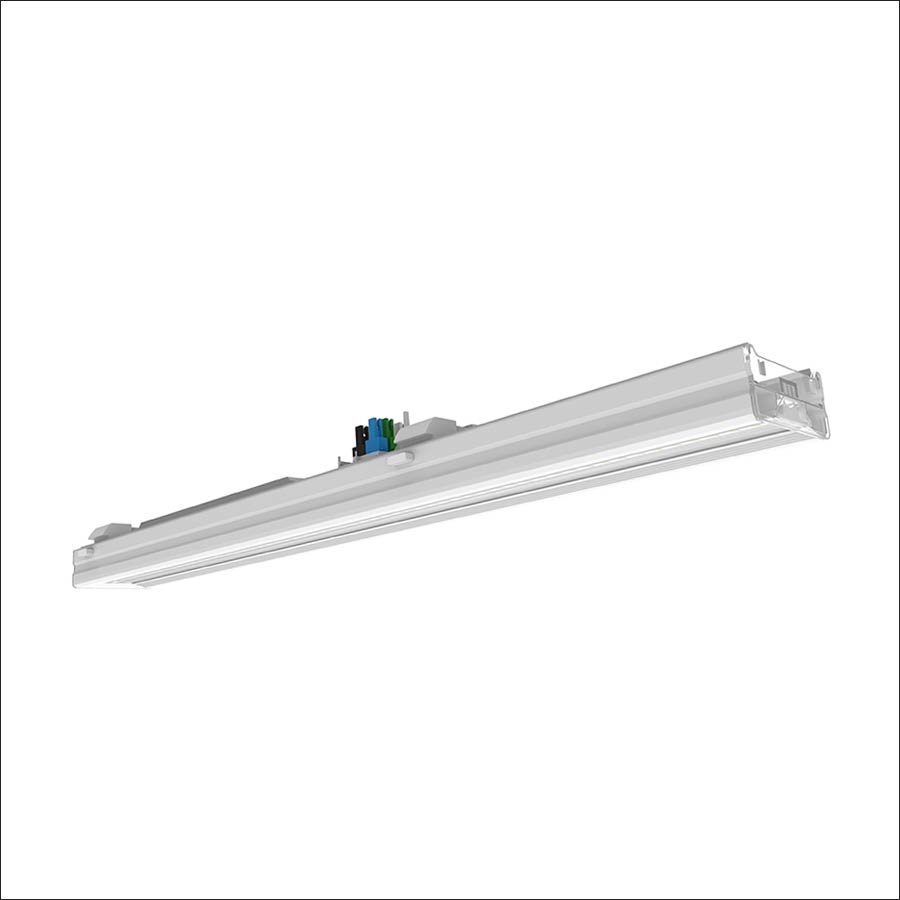

Linkable LED Linear Light 26W-85W — The LED Luminaire And Trunking Rail Are Perfectly Matched To Each Other.

Optical Lens of 26W-85W Linkable LED Linear Light Fixtures

With six optical lens, the LED linear light fixtures can meet all the requirements to handle various tasks in industrial and commercial applications. It helps people work precisely to increase operation efficiency and triple save energy in engineering applications. It also benefits commercial area for presentation and retailing without extra reflector.

Optical Lens of 26W-85W Linkable LED Linear Light System

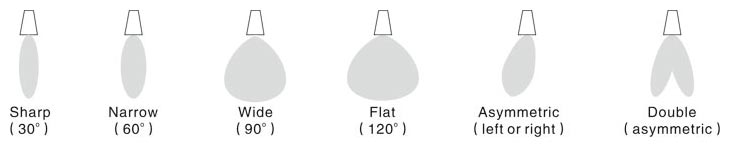

Light Beam Angle of LED Linear Light — LED Sharp（30°）

LED Sharp（30°）

The sharp-angle lens can make the light highly concentrated, focusing on the item and highlighting the item so that the customer can clearly see the item at the first time. Can also focus on the precision workbench of the production line, so that the light is concentrated on the workbench, rather than other non-important places, this can help employees work more efficiently and accurately, but also help avoid unnecessary mistakes and reduce damage to precision work.

LED Narrow（60°）

The 60-degree angle is specially designed for corridors, passages, and aisles. It provides the most suitable and uniform light without causing eye discomfort due to being too bright or too dark, especially for hospital patients.

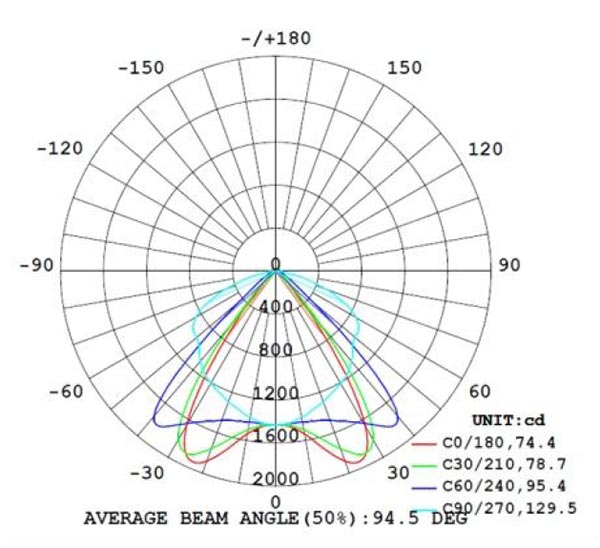

LED Wide Angle (90°)

With a wide angle (90 degrees), multiple spaces, multiple areas can be easily illuminated, so that the entire The light distribution of the supermarkets is even, giving customers a good visual range and winning more popularity for the supermarket.

3-loop Switch Control for LED Linear Luminaire

The three-loop function controls the lights individually by means of three switches, SW1, SW2, SW3 (on/off ). These three switches are connected to L1, L2, L3。
