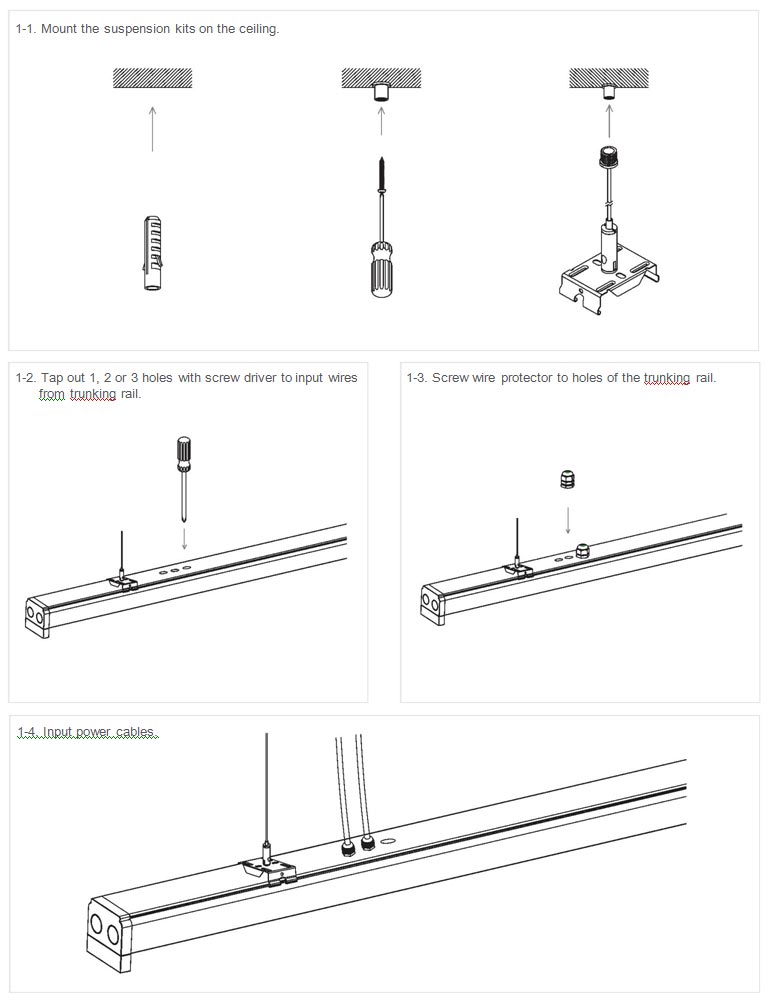

Step 1: Suspension
1-1. Mount the suspension kits on the ceiling.
1-2. Tap out 1, 2 or 3 holes with screw driver to input wires from trunking rail.
1-3. Screw wire protector to holes of the trunking rail.
1-4. Input power cables.

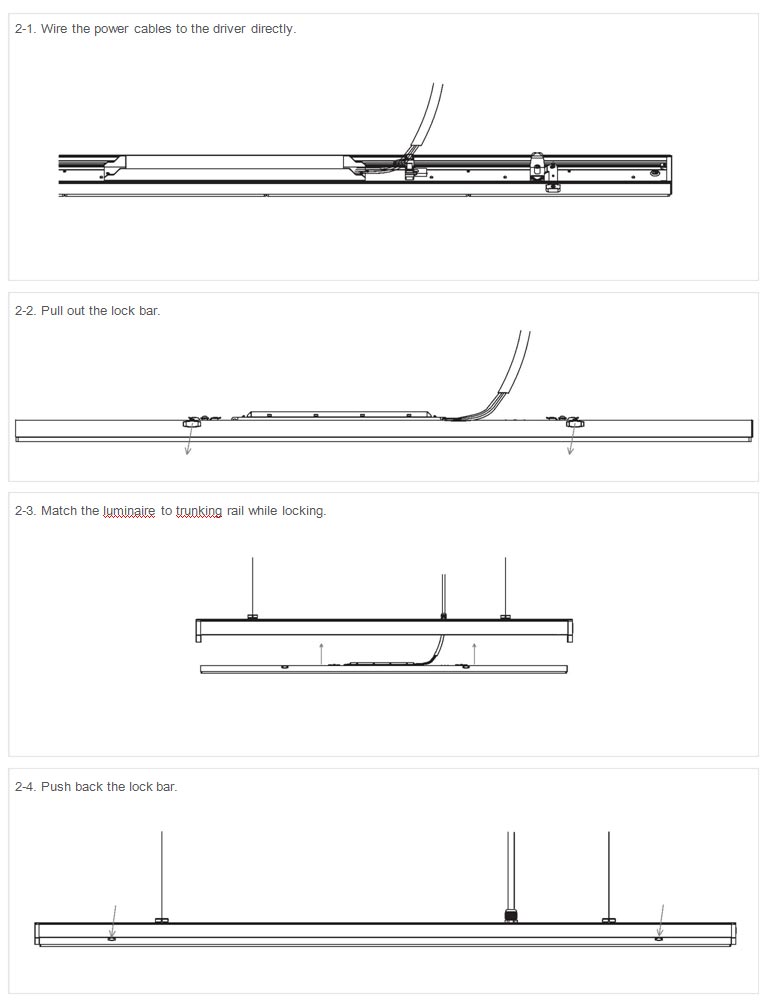

Step 2: Wiring and Locking
2-1. Wire the power cables to the driver directly.
2-2. Pull out the lock bar.
2-3. Match the luminaire to trunking rail while locking.
2-4. Push back the lock bar.
