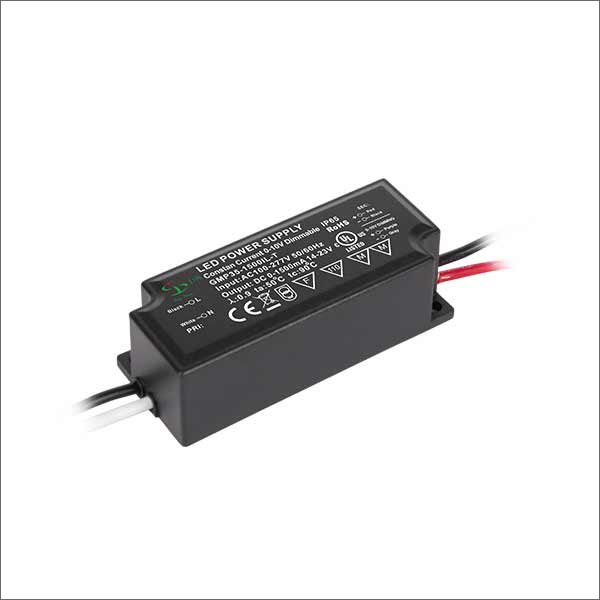

40W UL TUV CB CE Dimmable Constant Current LED Driver

LC-H 40W UL TUV CB CE Dimmable Constant Current LED Driver with SCP OCP OVP OTP4

  • Constant current mode
  • Non-isolated power supply with plastic case
  • Build-in 3-in-1, intelligent time isolated dimming function, dim off or not
  • Isolated auxiliary power +12V ( Optional )
  • Light control function ( Optional )
  • Build in protection function of short circuit, over current, over voltage and over temperature
Category:

Item: LC-40NH
Power: 40W
Application: Flood light, stage ligh, area light and high-pole light
Certificates: UL ClassP, TUV, CB, CE
5 Years Warranty

Features of 40W UL TUV CB CE Dimmable Constant Current LED Power Driver

Efficiency up to 90%
Isolated Dimming (Optional): 1-10V, PWM, Resistor
Light Control Function(Optional)
IP65
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 4kV, L/N-PE: 6kV
Operation temperature: -40~+60



Model AC Input Range DC Output Range Output Current Output Power
LC-40N062HA (100-277) Vac (37-62) Vdc 0.5-0.7 A 20W
