Node Connector for LED Linear Lighting Fixture

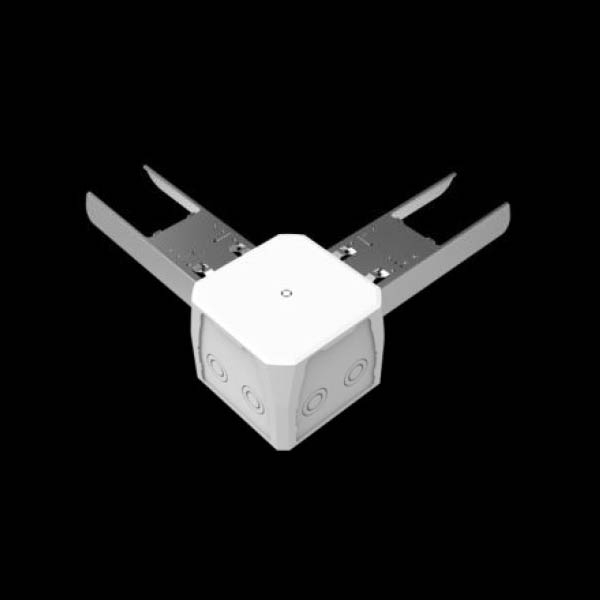

With an easy linkable installation connector and bar-units, the LED linear lighting fixture is able to set up to L-node, T-node and even X-node depending on actual application and illumination needs.

In the actual installation process, the node has three connection modes, and the connector is used to connect the entire lighting fixture. Compared with other traditional LED lights, this method will greatly solve various application problems in the installation.

Item: YB-01-D Node Connector
Product Name: Node Connector for Dimmable LED Linear Lighting Fixture

Using various node connectors, the dimmable led linear lighting fixture system can be assembled and combined in a myriad of variants, fully meeting the respective requirements in terms of design and lighting technology , T, X and L connectors open up many different options for creative design using light. Thus, the structures themselves will define the wiring sequence via the node connectors on site, depending on the application requirements.

Lighting System Connected With Node Connector for 26W-85W Linkable LED Linear Light System — Lighting System Connected With Node Connector for 26W-85W Linkable LED Linear Lamp

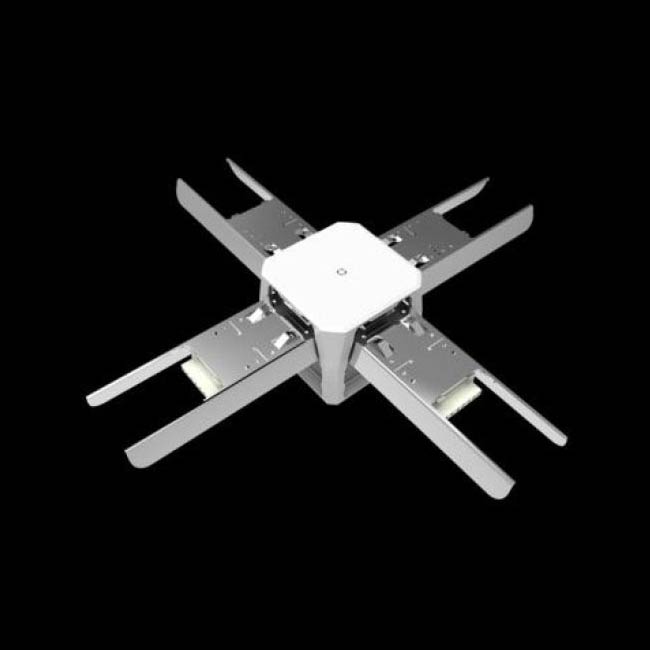

Node Connector for 26W-85W Linkable LED Linear Light System — X Node Connector

All fixture components can be combined without tools. L, T and X connectors expand the fixture’s application range.

Each node connector has diverse of electrical feed-in and feed-out.
The node connector is not only to connection the cross trunking, but also to connect the wire inside the trunking. And the node connector itself could even be the electricity feed-in point.
L, T and X Node connector made of aluminum material, can be suspended in node point with hanging accessories. A node comprises at least one in coming feeder and one out going feeder.
L, T and X Node connector are available for 3 wire 5 wire 7wire or 8wire Linear lighting fixture, fully meeting the requirements of different installation way, connecting all individual tubes together.
Node connector can connect the lamps under any room application. The last connector will be sealed by a plastic feed-end cap.

Popular Names

Linkable LED linear light is also called LED linear lamps, LED linear trunking system, LED linear lighting or LED trunk light, it is very popular lighting solution for those commercial and industrial space.
