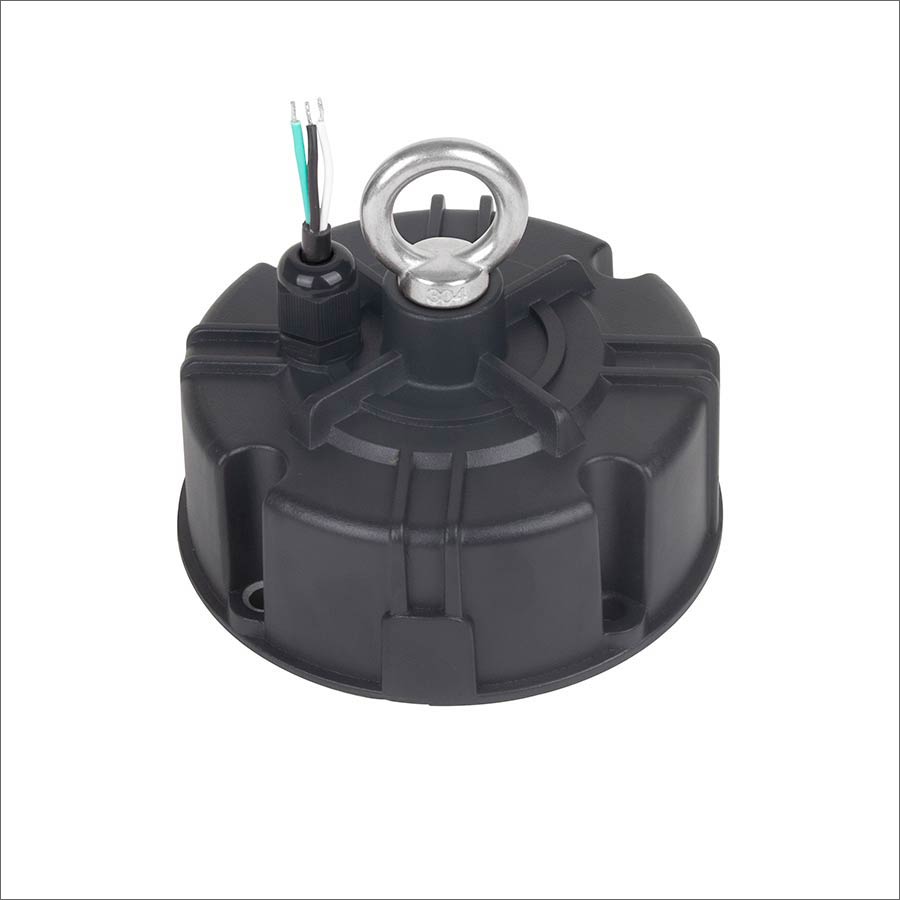

LE 100W UL TUV CCC CE Dimmable Constant Current LED Driver for Industrial Lighting

  • Constant current mode
  • Isolated power supply for high bay light
  • Double stage circuit, flicker free
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function, dim off or not
  • With auxiliary power ( +12V )

Item: LE-100N
Power: 100W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features of 100W UL TUV CCC CE Dimmable Constant Current LED Drivers

  • Efficiency up to 90%
  • Isolated Dimming(Optional): 0-10V, PWM, Resistor and Timming
  • IP65
  • Protections: SCP/OTP/OVP/OPP
  • Surge Protection: L-N: 4kV, L/N-PE: 6kV



Model AC Input Range DC Output Range Output Current Output Power
LE-100N038 (100-277)Vac (24-38)Vdc 1.5-3.5A 100W
LE-100N054 (100-277)Vac (27-54)Vdc 1-2.5A 100W
LE-100N068 (100-277)Vac (40-68)Vdc 0.8-2A 100W
